Debugging

Shannon Pileggi

Agenda

Getting started

Troubleshooting

Moving on

Debugging your code

Debugging in RStudio

Debugging their code

Special cases

Read the source

Getting started

About

Licensing

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License (CC BY-SA4.0).

Material

This material was originally developed as part of the 2-day RStudio Conference “What They Forgot To Teach You About R” workshop.

Checklist

R installed? Pretty recent?

     Recommended R ≥ 4.2.0

RStudio installed?

     I’m on 2022.02.3+492

Ready to build packages?

     devtools::has_devel()
     Your system is ready to build packages!

Additional resources

• WTF Ch 11 Debugging R code
  https://rstats.wtf/debugging-r-code.html

• Advanced R Ch 22 Debugging
  https://adv-r.hadley.nz/debugging.html

• Jenny Bryan 2020 RStudio Conf Keynote Object of type closure is not subsettable
  https://github.com/jennybc/debugging#readme

• Amanda Gadrow 2018 Webinar Debugging techniques in RStudio
  https://www.rstudio.com/resources/webinars/debugging-techniques-in-rstudio/

• Jim Hester 2019 Introduction to debugging in R and RStudio
  https://www.jimhester.com/talk/2019-crug-debugging/

• Maëlle Salmon 2021 How to become a better R code detective?
  https://masalmon.eu/2021/07/13/code-detective/

• Kara Woo 2019 RStudio Conf Box plots A case study in debugging and perseverance https://www.rstudio.com/resources/rstudioconf-2019/box-plots-a-case-study-in-debugging-and-perseverance/

Troubleshooting

1. Search

• Google exact error message

• keyword search on RStudio community

• keyword search on stackoverflow, [r] tag

Samantha Csik 2022 R-Ladies St. Louis Workshop Teach Me How To Google: slides, recording

2. Reset

Have you tried turning it OFF and ON again?

Restart R, especially when things get weird.

Session -> Restart R or

• Ctrl + Shift + F10 (Windows),

• Cmd + Shift + 0 / Cmd + Shift + F10 (Mac)

Tools -> Global Options -> Workspace

Your turn, exercise 00

Click here to open the NHS-R RStudio Cloud debugging work space.

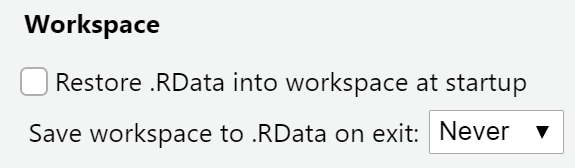

In RStudio Cloud, set your Workspace options as shown.

Tools -> Global Options -> Workspace

03:00

3. Reprex

minimum reproducible example

https://reprex.tidyverse.org/

minimum

MINIMAL: Don’t wring hands and speculate. Work a small concrete example that reveals, confirms, or eliminates something.

reproducible example

Reproducible example: No reliance on hidden state

why reprex

Review

Troubleshooting strategies:

1. Search

2. Reset

3. Reprex

But what if

Moving on

from troubleshooting to…

formal debugging techniques.

Key concepts

traceback

   location where did the error occur

interactive debugger

   context why did the error occur

your code   vs   their code

interactive debugging: pause the execution of a function and launch environment where you can interactively explore what’s happening

Debugging tools

source for image in google slides at

https://docs.google.com/presentation/d/14mqGirw4TnblqSFY0Tk30YrxkAwIrz1xo4nMIwgqk_o/edit?u sp=sharing

This is a lot.

These tools achieve similar objectives slightly differently.

People don’t generally use all of these tools at once. They pick and choose the ones they like.

Sourcing

⚠️ name your script with functions

⚠️ source your script with functions

for the best debugging experience 😎

Set up

f <- function(x) {
  x + 1
}

g <- function(x) f(x)

g("a")

Error in x + 1: non-numeric argument to binary operator

Debugging your code

print()

f <- function(x) {
  print(x)
  x + 1
}

g <- function(x) f(x)

g("a")

[1] "a"

Error in x + 1: non-numeric argument to binary operator

Insert numerous print statements to precisely locate the problem, and see the values of important variables.

Print debugging is slow and primitive, but it always works.

Can provide location by inserting print statements in different places, can provide context by seeing values.

can assess location by where print statement is inserted

can assess context by value printed

non-interactive debugging

good for your code

cat()

f <- function(x) {
  cat("f()\n")
  cat("x =", x, "\n")
  x + 1
}

g <- function(x) f(x)

g("a")

f()
x = a

Error in x + 1: non-numeric argument to binary operator

can assess location by where print statement is inserted

can assess context by value printed

non-interactive debugging

good for your code

print is handy to see full object; cat is handy to create smaller messages

traceback()

source("demo/my_functions.R")
g("a")
traceback()

shows the sequence of calls that lead to the error.

used interactively in console, called for last error observed

Richer traceback

source("demo/my_functions.R")
options(error = rlang::entrace)
g("a")
rlang::last_error()

Richer traceback

source("demo/my_functions.R")
options(error = rlang::entrace)
g("a")
rlang::last_error()
rlang::last_trace()

options(error = rlang::entrace)
could go in your .Rprofile

traceback vs rlang functions

Numbering and ordering differs between traceback() and rlang functions.

browser()

f <- function(x) {
  browser()
  x + 1
}

g <- function(x) f(x)

browser() opens the interactive debugger.

1. Modify the function by inserting a browser() statement.

2. Source the function.

3. Execute the function.

Interactive debugger

Interactive debugger tips

Investigate objects

Control execution

ls(), ls.str(),
str(), print()

command	operation
n	next statement
c	continue (leave interactive debugging)
s	step into function call
f	finish loop / function
where	show previous calls
Q	quit debugger

Debugging your code

Your turn, exercise 01

Click here to open the NHS-R RStudio Cloud debugging work space.

Complete 01_exercise to practice debugging your own code.

Check out the README.md for some getting started tips!

• 01_debugging_spartan.R (directions to explore without suggested code)

• 01_debugging_comfy.R (directions to explore with suggested code)

• 01_debugging_solution.R (directions to explore with code solutions)

15:00

Debugging in RStudio

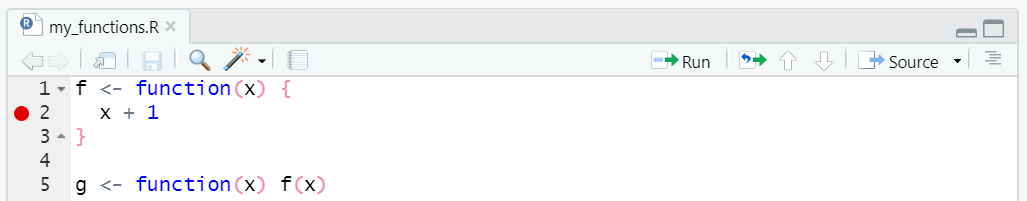

Editor breakpoints

red circle = breakpoint = browser()

(but you don’t have to change your code)

Set / re-set an editor breakpoint:

• click to the left of the line number in the source file

• press Shift+F9 with your cursor on the line

Editor breakpoints

red circle = breakpoint = browser()

(but you don’t have to change your code)

To activate, either

• click IDE Source button, or

• debugSource(“demo/my_functions.R”)

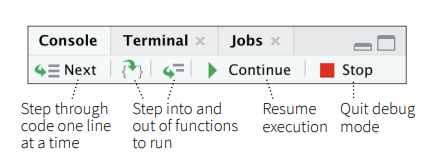

Debugging console

IDE on error

Automatically invoke actions on error.

New set up for demonstration.

f <- function(x) { strsplit(x, ",") }
g <- function(x) { f(x) }
g("a,b")

[[1]]
[1] "a" "b"

g(factor("a,b"))

Error in strsplit(x, ","): non-character argument

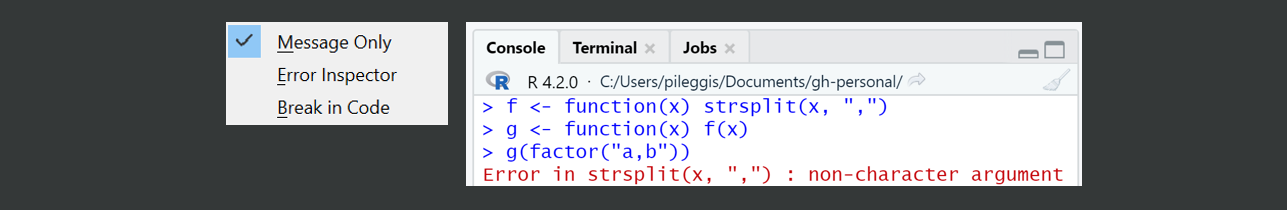

IDE message only

IDE error inspector

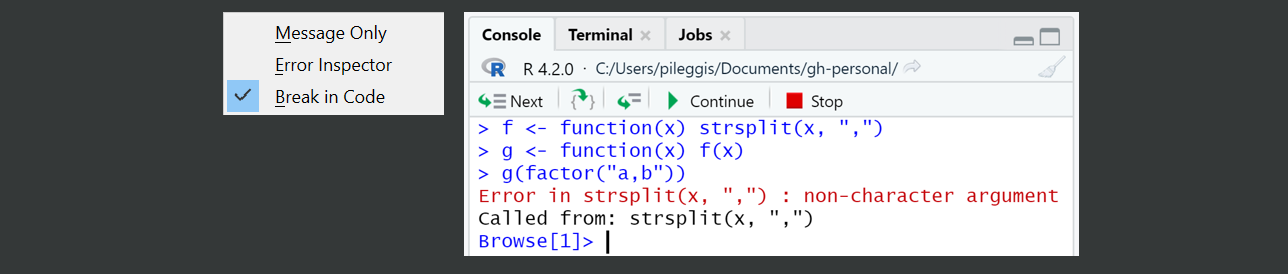

IDE break in code

Error inspector

# IDE Error Inspector not triggered
f <- function(x) x + 1
g <- function(x) f(x)
g("a")

# IDE Error Inspector not triggered
strsplit(factor("a,b"), ",")

# IDE Error Inspector not triggered
f <- function(x) strsplit(x, ",")
f(factor("a,b"))

# IDE Error Inspector yes triggered
g <- function(x) f(x)
g(factor("a,b"))

The error inspector is only invoked if your code is involved.

Debugging in the RStudio IDE

Your turn, exercise 02

Complete 02_exercise to practice debugging a slightly different version of your own code, using features from the RStudio IDE.

07:00

Debugging their code

debug()

debug() = browser()/ breakpoint in first line of function

# source if code is yours, otherwise not necessary
source("demo/my_functions.R")
# set debugging flag
debug("g")
g("a")
# turn off debugging flag
undebug("g")

• interactive debugger is initiated every time g() is executed, until undebug("g")

• depending on function internals, this can… trap you in the debugger 😬

debugonce()

debugonce() = browser()/ breakpoint in first line of function

# source if code is yours, otherwise not necessary
source("demo/my_functions.R")
# set debugging flag
debugonce("g")
g("a")

• one time only!

• interactive debugger initiated a single time when g() is executed

options(error = recover)

we already discussed
options(error = rlang::entrace)
for a richer traceback on error

🤠 options(error = recover)

1. displays an interactive prompt with frames

2. you select the frame to enter the debugger

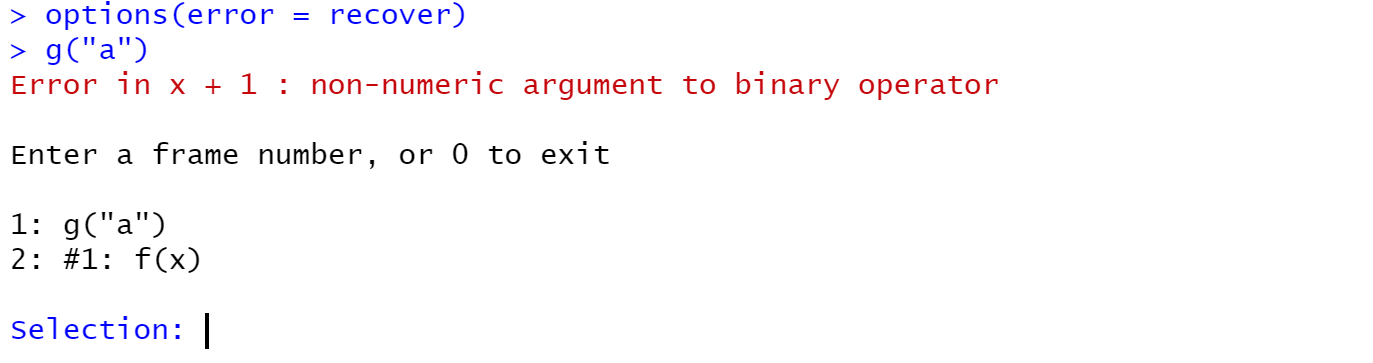

recover example

source("demo/my_functions.R")
options(error = recover)
g("a")
options(error = NULL)

trace() overview

trace(what = fun, tracer = browser)
is equivalent to

• inserting browser() in first line of function

• debug(fun)

you an also insert any code at any location in function

• trace(what = fun, tracer = browser, at = 2)
  inserts browser() at second step of fun

untrace(fun) cancels the tracing

trace() is a more flexible version of debug()

⚠️ trace() requires { in function definition

trace() without a specified step

trace(what = colSums, tracer = browser)
colSums(1:3)
# ls.str() in browser
untrace(colSums)

trace(what = colSums, tracer = browser)
is equivalent to

• inserting browser() in first line of colSums
  if we had the source code

• debug(colSums)

navigating function steps

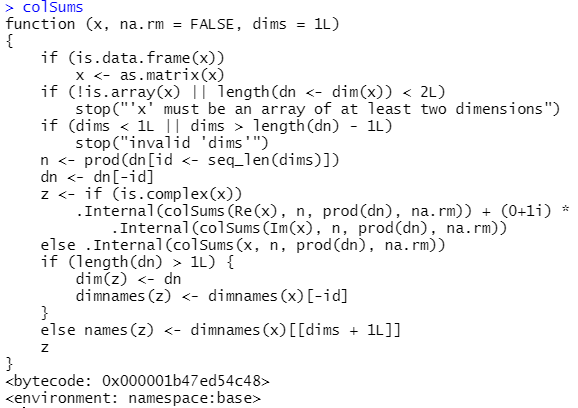

investigate 🧐 the function with as.list() + body()

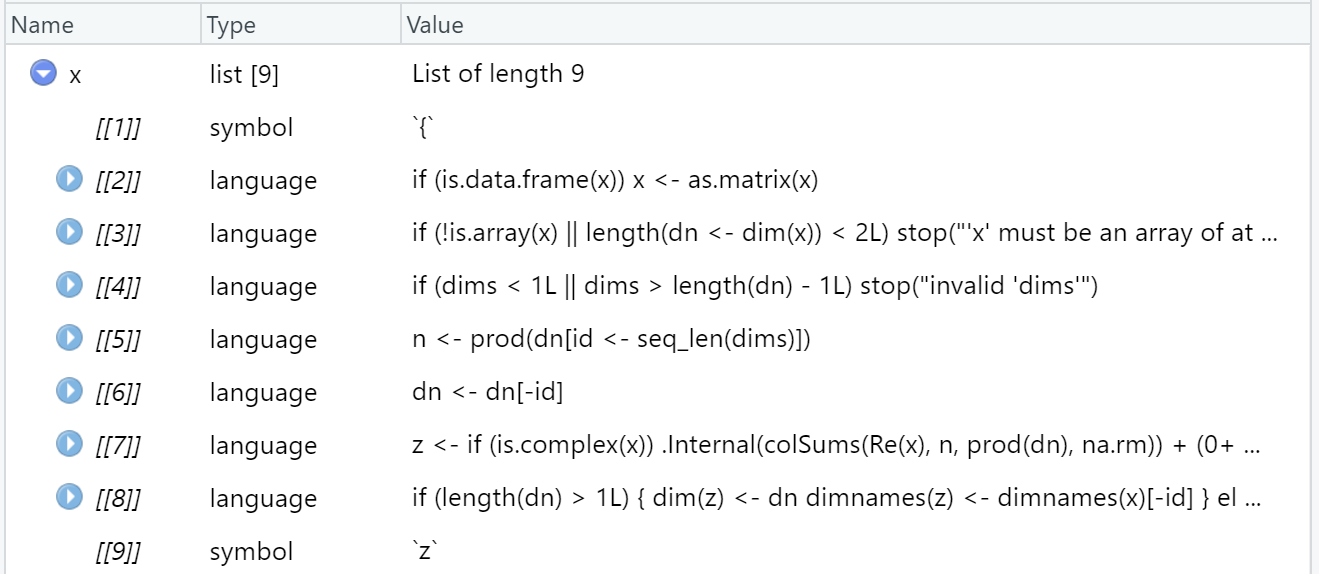

x <- as.list(body(colSums))
View(x)

identify function step

trace() at specified step

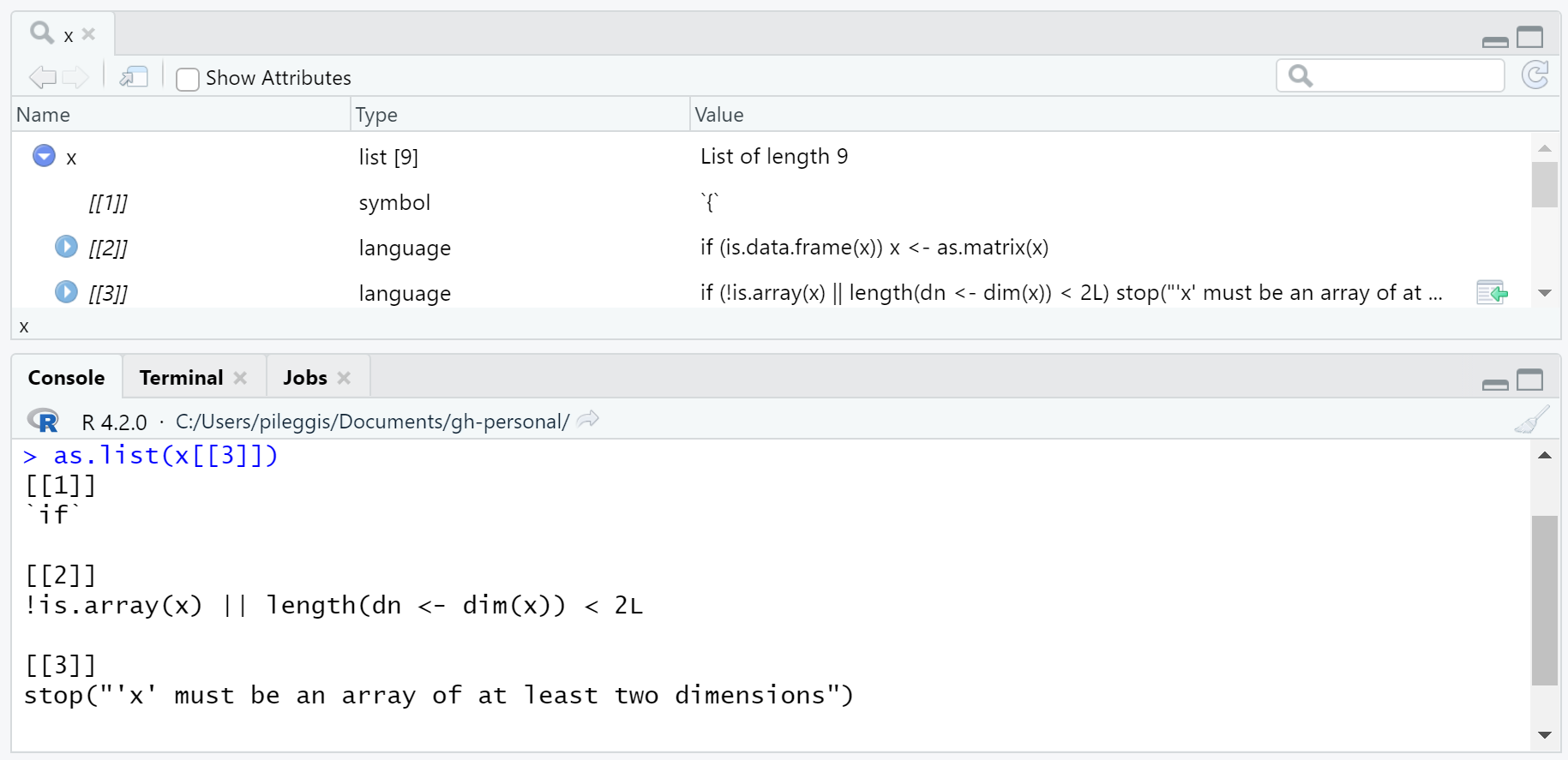

# identify spot to insert code
as.list(x[[3]][[1]])
# equivalent notation
as.list(x[[c(3, 1)]])

# insert browser at step 3.1
trace(colSums, browser, at = list(c(3, 1)))
# execute function
colSums(1:3)
# ls.str() handy in browser
# cancel tracing
untrace(colSums)

Debugging their code

Your turn, exercise 03

# already installed in your RStudio Cloud work space
# install.packages("devtools")
# devtools::install_github("rstats-wtf/wtfdbg")

Complete 03_exercise to practice debugging others’ code.

10:00

Pick your favorite

Special cases

Rmarkdown

Troubleshooting:

1. rmarkdown chunk option error = TRUE enables knitting with errors

2. insert knitr::knit_exit() and interactively work through .Rmd

Debugging:

1. Adv R Ch 22.5.3 RMarkdown https://adv-r.hadley.nz/debugging.html#rmarkdown

2. WTF Ch 11.4 Debugging in Rmarkdown documents https://rstats.wtf/debugging-r-code.html#debugging-in-r-markdown-documents

Piped expressions

tracebacks can be verbose with pipes

options(error = rlang::entrace, rlang_backtrace_on_error = "branch")

gives trimmed tracebacks when using pipes

• more contributed answers on RStudio Community

• Matt Dray 2019 blog post Fix leaky pipes in R

Warnings

If you want to dig deeper into a warning, you can convert them to errors to initiate debugging tools.

?options
options(warn = 0) # default, stores warnings until top-level function returns
options(warn = 1) # warnings are printed as they occur
options(warn = 2) # upgrades warnings to errors


# initiate recover on warning
options(warn = 2, error = recover)
# restore original settings
options(warn = 0, error = NULL)

Debugging special cases

Read the source

(almost) all source on GitHub

Link	Description
github.com/search	All of GitHub! Can do advanced searches, too.
github.com/cran	CRAN packages
github.com/wch/r-source	R core

About searching on GitHub

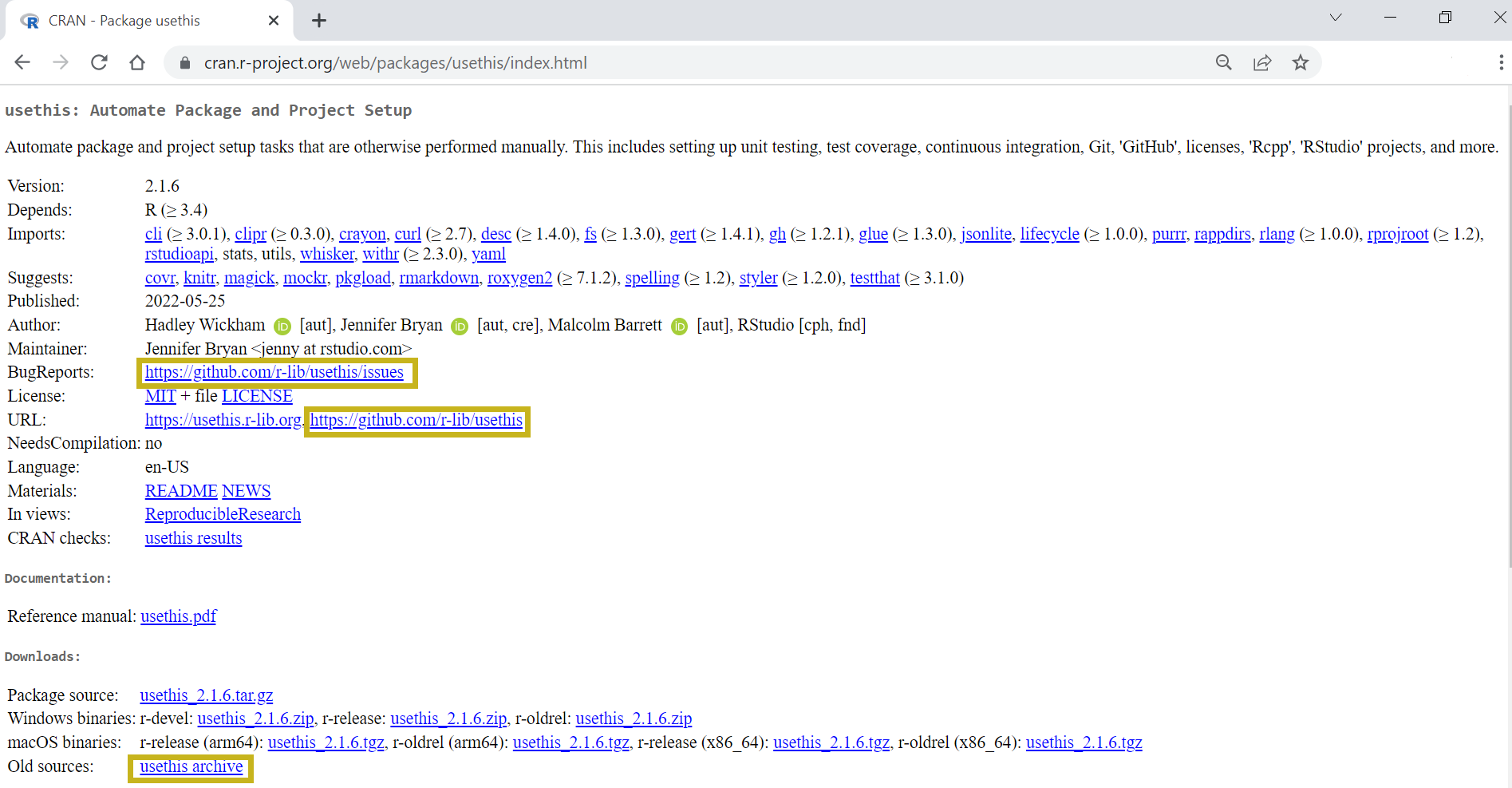

google: cran pkgname

github.com/cran

In R console

pkg::fnc to see exported functions

pkg:::fnc to see non-exported functions

Your turn, investigating a CRAN package

At a high level,
how does readr::read_lines() work?

03:00

github.com/wch/r-source

Location	Item
src/main	base R
src/library/	packages included in base R
doc/manual	R manuals & documentation

Your turn, investigating source code

1. When was the trimws() function added to base R?

2. How does is.na() work?

Hints on next slides.

05:00

Investigating source code hints

1. When was the trimws() function added to base R?

Try restricting search to only commit messages in github.com/wch/r-source.

Investigating source code hints

2. How does is.na() work?

1. Look at the function.

is.na

function (x)  .Primitive("is.na")

2. Look in github.com/wch/r-source/src/main/names.c to find the name of the internal function. Or in GitHub search bar: is.na filename:names.c.

3. In GitHub search bar: "do_isna" language:c

Go forth,
and learn from your bugs!

Troubleshoot

Debug

Read the source
