Context is King

Shannon Pileggi

The setting

An email

Hi Shannon -

I see Travis is out on vacation. Can you re-run the flight delay report? Please walk us through the numbers at the next nycflights project meeting.

Thanks,

Sarah

Director of Flight Operations

Success 🎉

Characteristic	John F Kennedy Intl N = 111,2791	La Guardia N = 104,6621	Newark Liberty Intl N = 120,8351
delay_category
Early	61,146 (56%)	63,129 (62%)	59,300 (50%)
On time	6,239 (5.7%)	4,690 (4.6%)	5,585 (4.7%)
Late	42,031 (38%)	33,690 (33%)	52,711 (45%)
Unknown	1,863	3,153	3,239
1 n (%)

The email

Hi Shannon -

I see Travis is out on vacation. Can you re-run the flight delay report? Please walk us through the numbers at the next nycflights project meeting.

Thanks,

Sarah

Director of Flight Operations

Walk through the numbers

56% of flights…

Characteristic	John F Kennedy Intl N = 111,2791	La Guardia N = 104,6621	Newark Liberty Intl N = 120,8351
delay_category
Early	61,146 (56%)	63,129 (62%)	59,300 (50%)
On time	6,239 (5.7%)	4,690 (4.6%)	5,585 (4.7%)
Late	42,031 (38%)	33,690 (33%)	52,711 (45%)
Unknown	1,863	3,153	3,239
1 n (%)

departing from JFK

departed early

arriving at JFK

arrived early

😬😱

Characteristic	John F Kennedy Intl N = 111,2791	La Guardia N = 104,6621	Newark Liberty Intl N = 120,8351
delay_category
Early	61,146 (56%)	63,129 (62%)	59,300 (50%)
On time	6,239 (5.7%)	4,690 (4.6%)	5,585 (4.7%)
Late	42,031 (38%)	33,690 (33%)	52,711 (45%)
Unknown	1,863	3,153	3,239
1 n (%)

A journey to understand

source data &

downstream variables

Data stewardship

The code

flights_delay <- flights |>
  select(origin, dest, arr_delay, dep_delay) |>
  left_join(
    select(airports, faa, name),
    join_by(origin == faa)
    ) |>
  mutate(
    delay_category = case_when(
      dep_delay < 0 ~ "Early",
      dep_delay == 0 ~ "On time",
      dep_delay > 0 ~ "Late"
    ) |> fct_relevel("Early", "On time", "Late")
  )

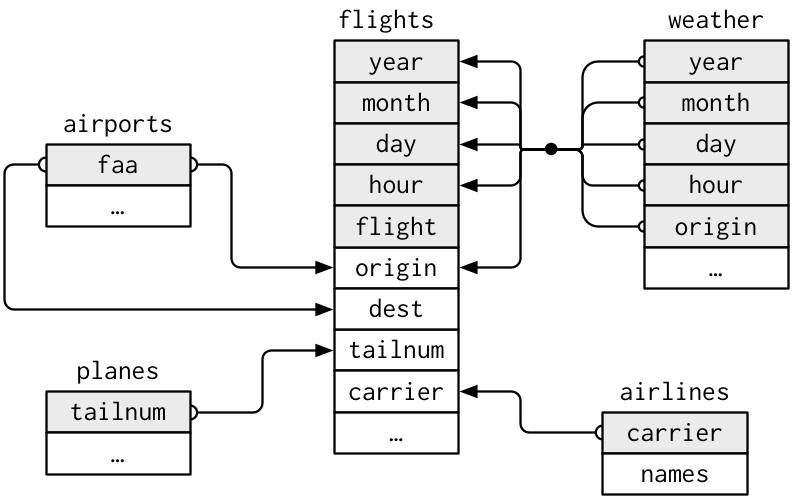

nycflights13

https://r4ds.had.co.nz/relational-data.html

Source data context

View(flights)

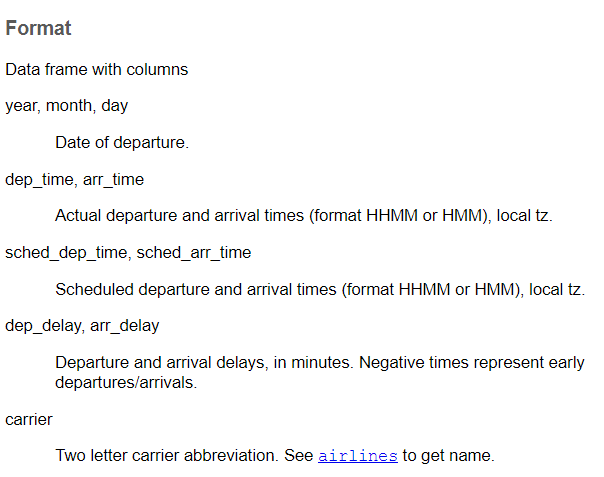

?flights

Source data context

View(flights)

External excel file

Source data context can and should be embedded in your data

View(flights_labelled)

source for image in google slides at

https://docs.google.com/presentation/d/1tM76oC-HhcGOPJgYGezV1pW56Rh4w2qaTdL8cczETX0/edit#slide=id.g2eeea21208f_0_36

Assigning variable labels

flights_labelled <- flights |>
  labelled::set_variable_labels(
    year  = "Flight year of departure",
    month = "Flight month of departure",
    ...
  )

Further reading

The case for variable labels in R

flights_labelled <- flights
attr(flights_labelled$year,  "label") <- "Flight year of departure"
attr(flights_labelled$month, "label") <- "Flight month of departure"
...

Further reading

Advanced R, Ch 3.3 Attributes

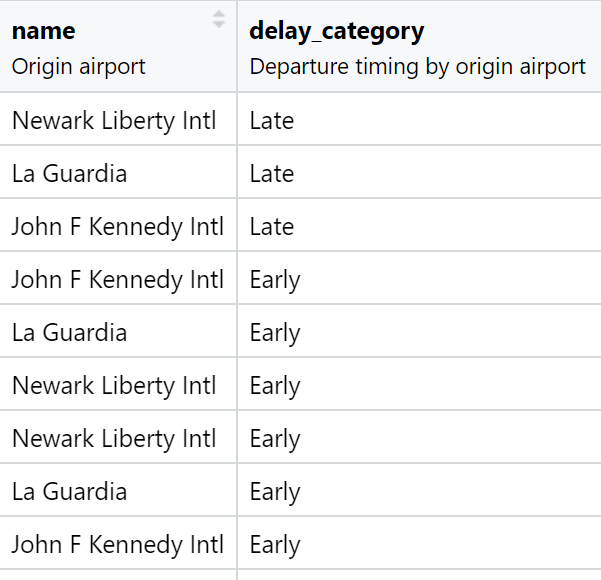

Viewing labelled data

View(flights)

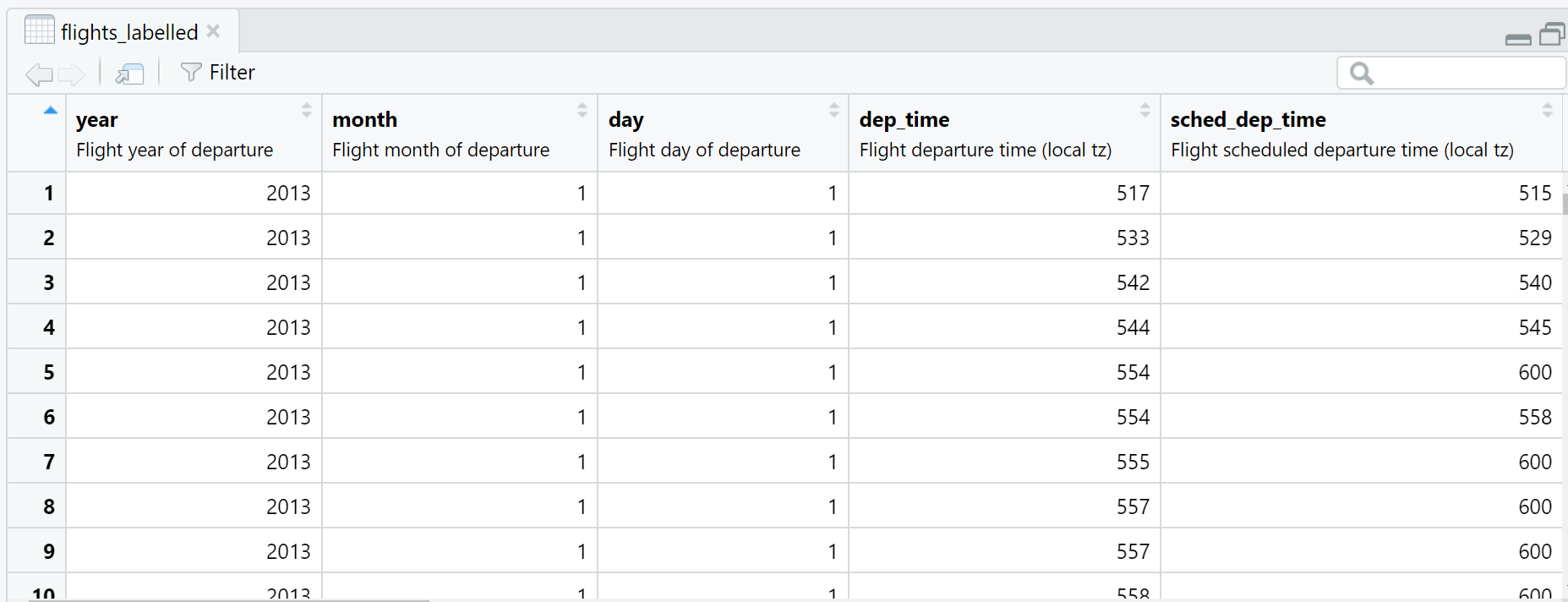

View(flights_labelled)

Viewing labelled data

View(flights)

View(flights_labelled)

Viewing labelled data

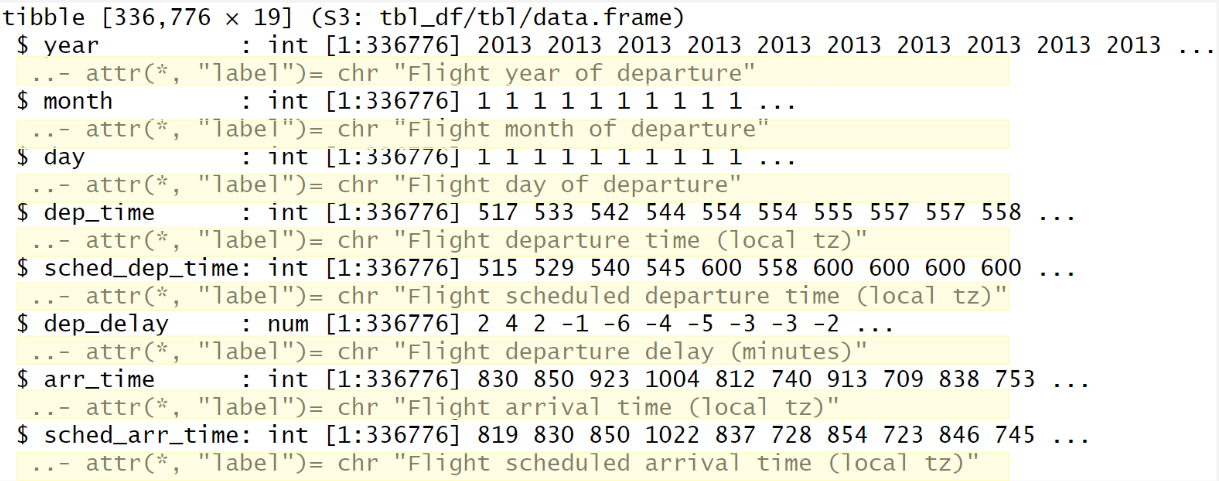

str(flights_labelled)

Identifying downstream context

flights_delay <- flights |>
  select(origin, dest, arr_delay, dep_delay) |>
  left_join(
    select(airports, faa, name),
    join_by(origin == faa)
    ) |>
  mutate(
    delay_category = case_when(
      dep_delay < 0 ~ "Early",
      dep_delay == 0 ~ "On time",
      dep_delay > 0 ~ "Late"
    ) |> fct_relevel("Early", "On time", "Late")
  )

delay_category represents

Departure timing by origin airport

Downstream data context can and should be embedded in your data

flights_delay_labelled <- flights_labelled |>
  select(origin, dest, arr_delay, dep_delay) |>
  left_join(
    select(airports_labelled, faa, name),
    join_by(origin == faa)
    ) |>
  mutate(
    delay_category = case_when(
      dep_delay < 0 ~ "Early",
      dep_delay == 0 ~ "On time",
      dep_delay > 0 ~ "Late"
    ) |> fct_relevel("Early", "On time", "Late")
  )  |>
  labelled::set_variable_labels(
    delay_category = "Departure timing by origin airport",
    name = "Origin airport"
  )

Assigning variable labels encourages a disciplined practice of creating explicit and succinct variable descriptions, ensuring that data context lives with the data.

This helps:

• current you, future you, & colleagues

• peer review processes

• creation of reusable data assets

data stewardship

practice of ensuring

that data assets are

accessible, secure,

trustworthy, and usable

data stewardship

practice of ensuring

that data assets are

accessible, secure,

trustworthy, and usable

Applications

Data dictonary

flights_schema <- tibble::lst(
  airlines_labelled,
  airports_labelled,
  flights_labelled,
  planes_labelled,
  weather_labelled
)

flights_dictionary <- flights_schema |>
  map(labelled::generate_dictionary) |>
  enframe() |>
  unnest(cols = value)

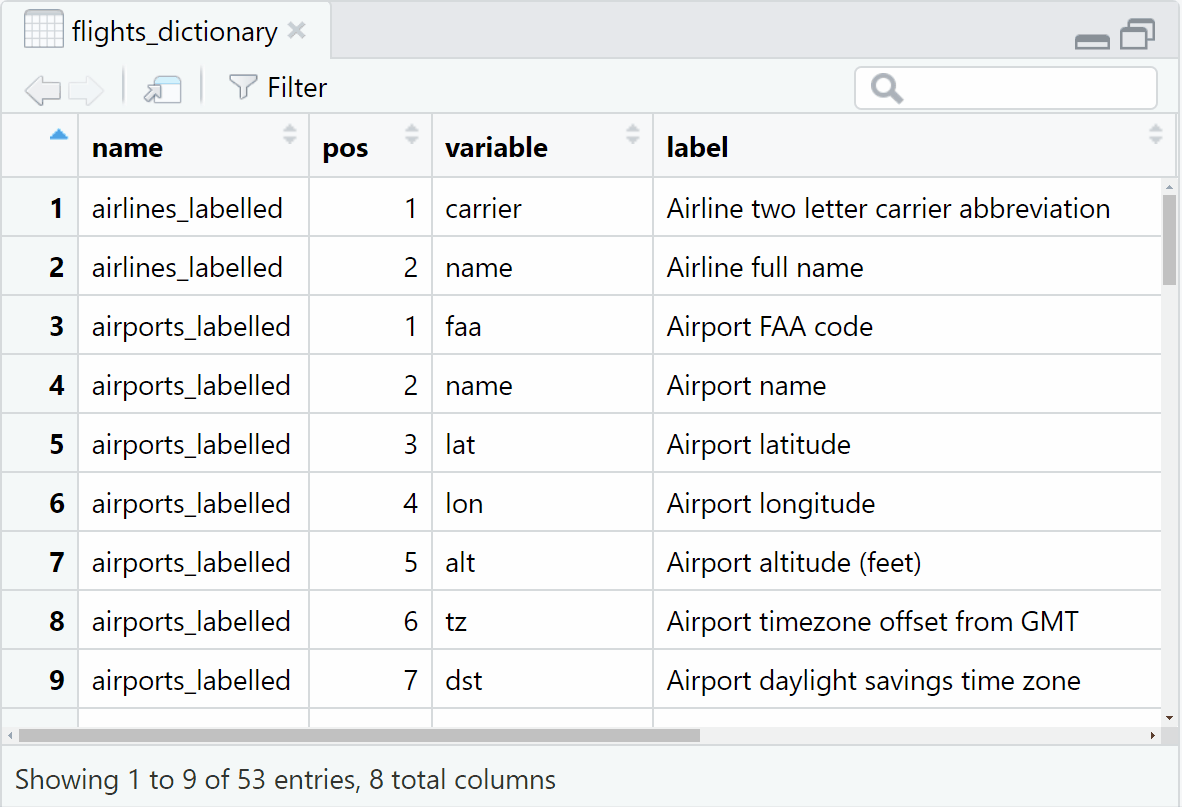

View(flights_dictionary)

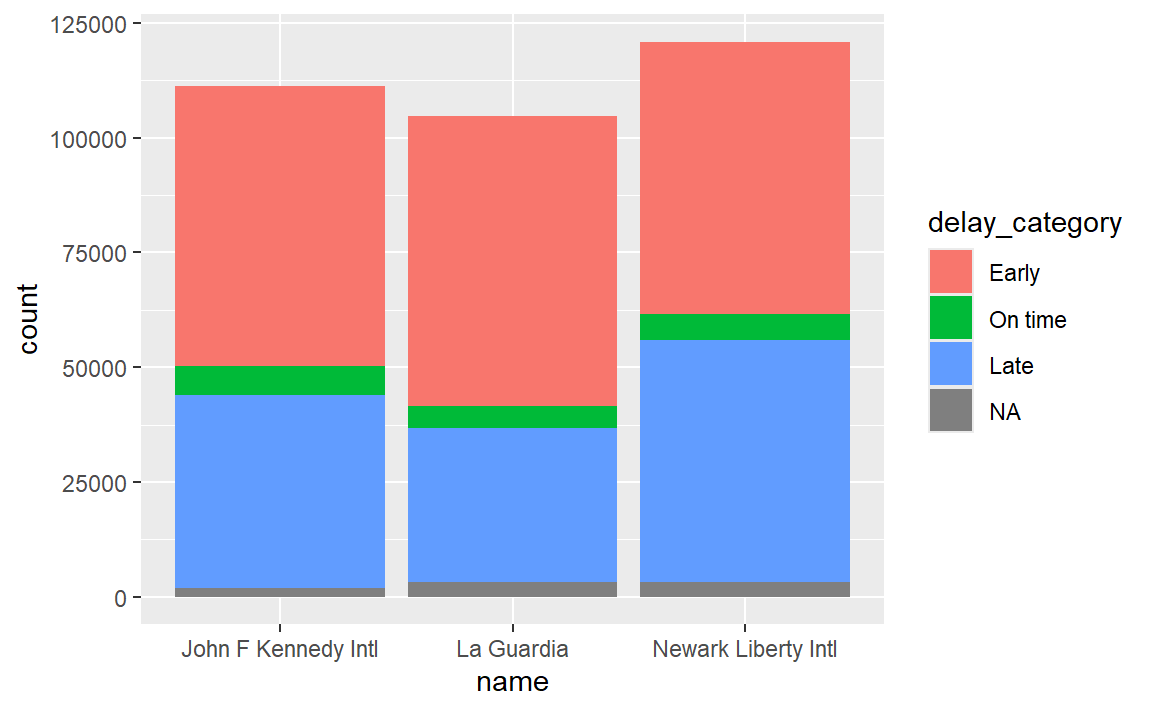

Figures, unlabelled

flights_delay_labelled |>
  ggplot(aes(x = name, fill = delay_category)) +
  geom_bar()

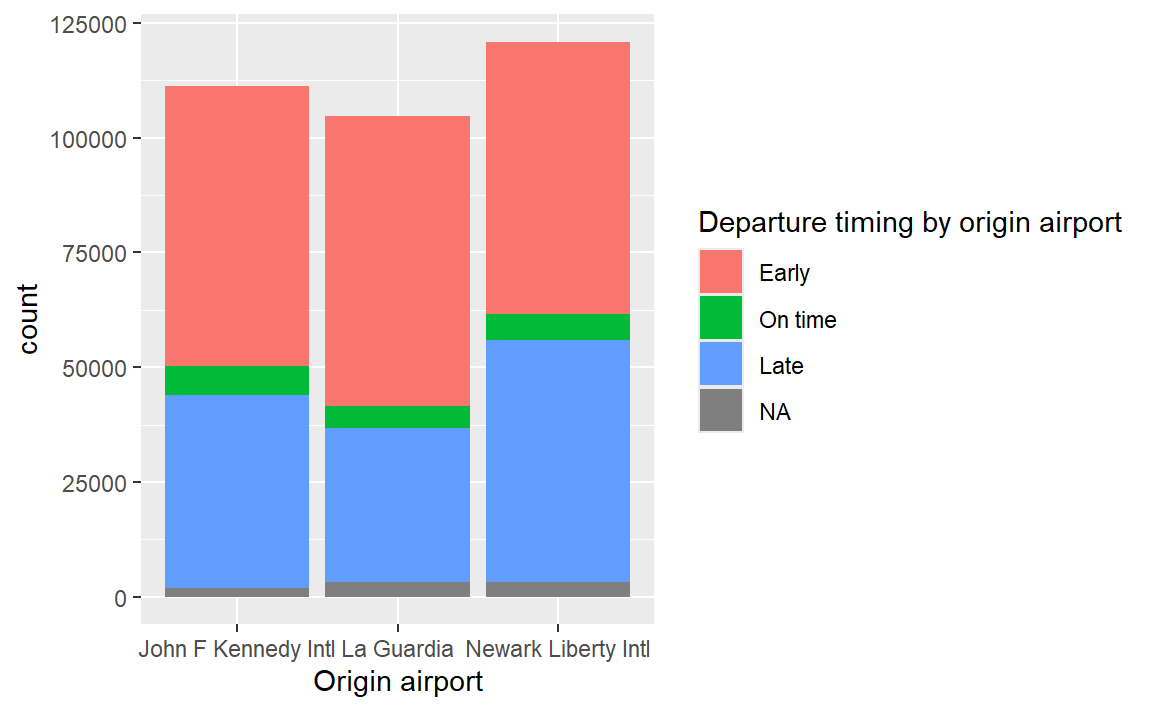

Figures, labelled

flights_delay_labelled |>
  ggplot(aes(x = name, fill = delay_category)) +
  geom_bar() +
  ggeasy::easy_labs()

Tabling, unlabelled

flights_delay |>
  select(name, delay_category) |>
  gtsummary::tbl_summary(
    by = name
  )

Characteristic	John F Kennedy Intl N = 111,2791	La Guardia N = 104,6621	Newark Liberty Intl N = 120,8351
delay_category
Early	61,146 (56%)	63,129 (62%)	59,300 (50%)
On time	6,239 (5.7%)	4,690 (4.6%)	5,585 (4.7%)
Late	42,031 (38%)	33,690 (33%)	52,711 (45%)
Unknown	1,863	3,153	3,239
1 n (%)

Tabling, labelled

flights_delay_labelled |>
  select(name, delay_category) |>
  gtsummary::tbl_summary(
    by = name
  )

Characteristic	John F Kennedy Intl N = 111,2791	La Guardia N = 104,6621	Newark Liberty Intl N = 120,8351
Departure timing by origin airport
Early	61,146 (56%)	63,129 (62%)	59,300 (50%)
On time	6,239 (5.7%)	4,690 (4.6%)	5,585 (4.7%)
Late	42,031 (38%)	33,690 (33%)	52,711 (45%)
Unknown	1,863	3,153	3,239
1 n (%)

In practice

nycflights has

5 data frames &

53 variables

a clinical trial has

90 data frames &

1400 variables

	source	downstream
data frames	90	50
variables	1400	700

Our strategy - single data frame

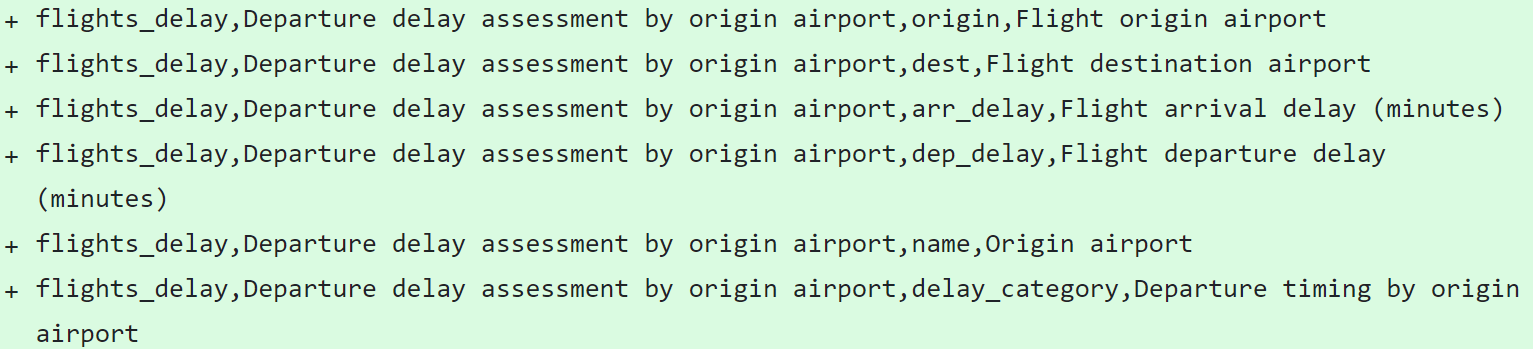

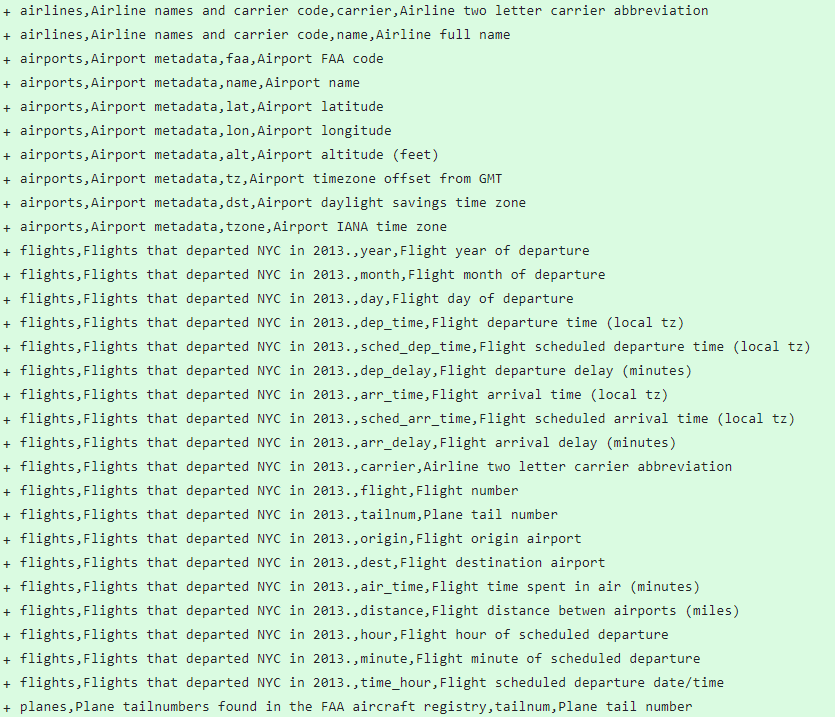

1. Maintain a csv with metadata.

Our strategy - single data frame

1. Maintain a csv with metadata.

2. Apply custom function for bulk label assignment.

flights_delay_labelled <- flights |>
  select(...) |>
  left_join(...) |>
  mutate(...) |>
  croquet::set_derived_variable_labels(
    df_name = "flights_delay",
    path = "nycflights_variables.csv"
  )

Our strategy - list of data frames

1. Maintain a csv with metadata.

Our strategy - list of data frames

1. Maintain a csv with metadata.

2. Apply custom function for bulk label assignment.

flights_schema_labelled <-
  purrr::imap(
    flights_schema_unlabelled,
    \(x, y) croquet::set_derived_variable_labels(
      data = x,
      df_name = y,
      path = "nycflights_variables.csv"
    )
  )

Wrap up

Summary

Summary

R

RStudio

R data

R

RStudio

R data

R

Python

Julia

RStudio

VS Code

Positron

R data

SAS

XPT

parquet

csv

JSON

DuckDB

PostgreSQL

Do you have sufficient metadata to facilitate reusable data assets?

Can you access and leverage the metadata in your programming environment?

Resources

• (2024) Positron issue to display column labels in data explorer 😇
  https://github.com/posit-dev/positron/issues/2971

• (2024) nycflights13 demo script
  https://github.com/shannonpileggi/context-is-king/blob/main/nycflights-delay-demo.R

• (2022) {croquet} package
  https://github.com/pcctc/croquet

• (2022) The case for variable labels in R
  https://www.pipinghotdata.com/posts/2022-09-13-the-case-for-variable-labels-in-r/

• (2020) Leveraging labelled data in R
  https://www.pipinghotdata.com/posts/2020-12-23-leveraging-labelled-data-in-r/

• (2019) Advanced R 2e, Ch 3.3 Attributes
  https://adv-r.hadley.nz/vectors-chap.html?q=attributes#attributes

• (2015) Commit that introduced labels to the RStudio IDE data viewer
  https://github.com/rstudio/rstudio/commit/92026abeb9d9ee7a05bdf30a81a5f4d919ea438e

Cheers to variable labels 🥂

Thank you to the many individuals who helped me develop this talk. Your support was invaluable.

Travis consented use

of his name. 🤗
